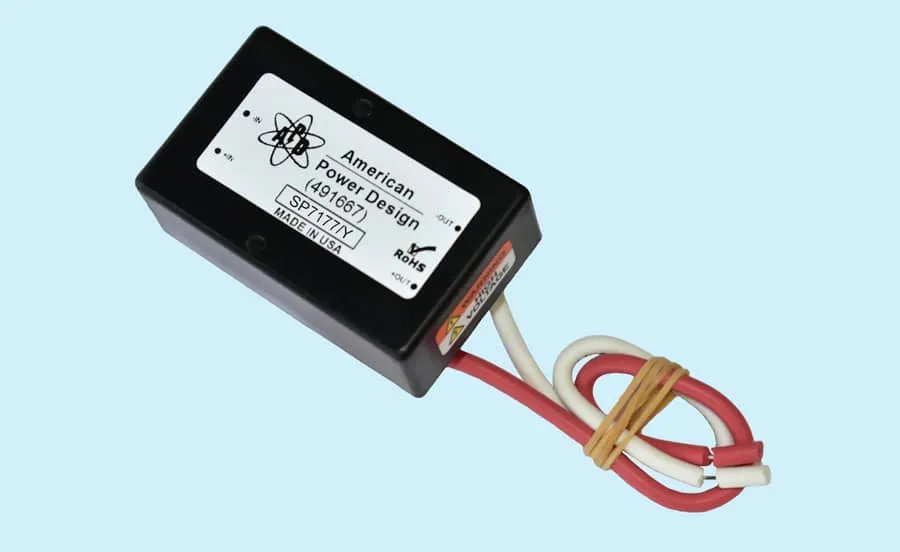

SP7177 ( 3W, 0-15V, + or-10kV )

Standard Model Number: SP7177

RoHs Model Number : SP7177/Y
Standard Model is NOT RoHs Compliant

Beschreibung

Input Voltage ………………………………………………….. 0-15Vdc

Output Voltage Programmable ………….. 0V to + or -10kVdc

Output Current …………………………………………………… 0.3mA

Voltage Accuracy …………………………………………….. +/- 10%

Line Regulation ………………………………………….. Proportional

Load Regulation ………………………………………………. +/- 10%

Output Ripple ……………………………………………… < 1.5% P-P

Start-up Voltage ……………………………………………… < 0.7Vdc

Input Filter ……………………………………… Low ESR Capacitor

No Load Input current ……………………………………. < 200 mA

Full Load Input current …………………………………… < 500 mA

Short Circuit Protection ……………………………….. Continuous

Switching Frequency …………………………………………. 60 kHz

Output Isolation ……………………………………………. 5,000 Vdc

Input / Output Capacitance …………………………………. < 60pF
