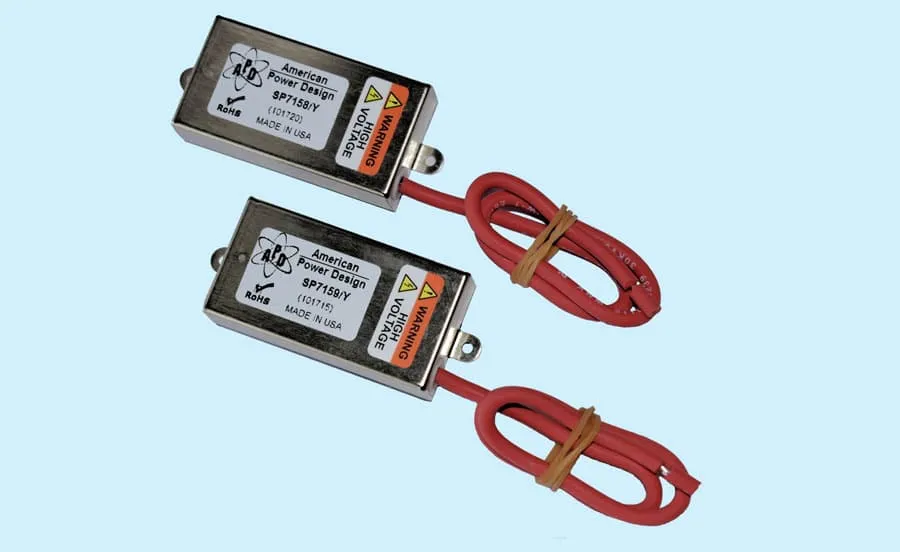

SP7159, ( 1W, 12V,+5V,0 to -5kV )

Standard Model Number : SP7159

RoHs Model Number : SP7159/Y
Standard Model is NOT RoHs Compliant

Beschreibung

Output Voltage ( SP7159/Y)…… 0V to +5kVdc (Programmable)

Input Voltage Range ……………………………………… 11.5V – 16Vdc

Output Voltage Accuracy …………………………………………. +/- 1%

Line Regulation ……………………………………………………… <0.05%

Load Regulation ……………………………………………………… <0.05%

Output Ripple ……………………………………………………. <0.15% P-P

Programming Voltage …………………………….. 0 – 5Vdc @ < 100uA

Programming Linearity (15% to 100% Vout) ……………………. <1%
