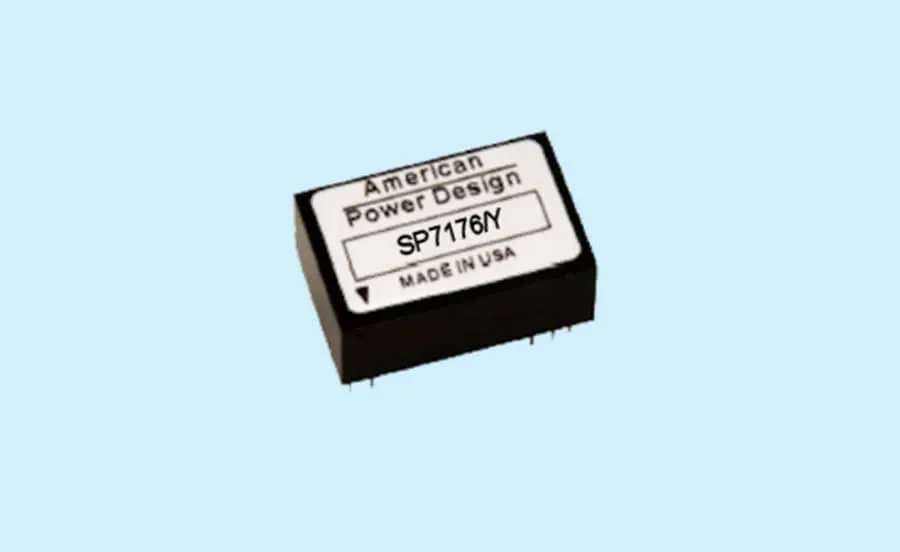

SP7176 ( 1.5W, 0-5V, + or -1500V )
Standard Model Number: SP7176
RoHs Model Number : SP7176/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………………… 0-5Vdc
Output Voltage ………………………………….. 0 to + or -1500Vdc
Output Current ……………………………………………………….. 1mA
Voltage Accuracy ………………………………… +/- 10% (Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………… +/- 5%
Output Ripple …………………………………………………… < 9V P-P
Start-up Voltage ……………………………………………….. < 0.7 Vdc
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ………………………………………… < 300mA
Full Load Input current ……………………………………….. < 550mA
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 80 kHz
Output Isolation ……………………………………………………. 1kVdc
Input / Output Capacitance ……………………………………. < 80pF
