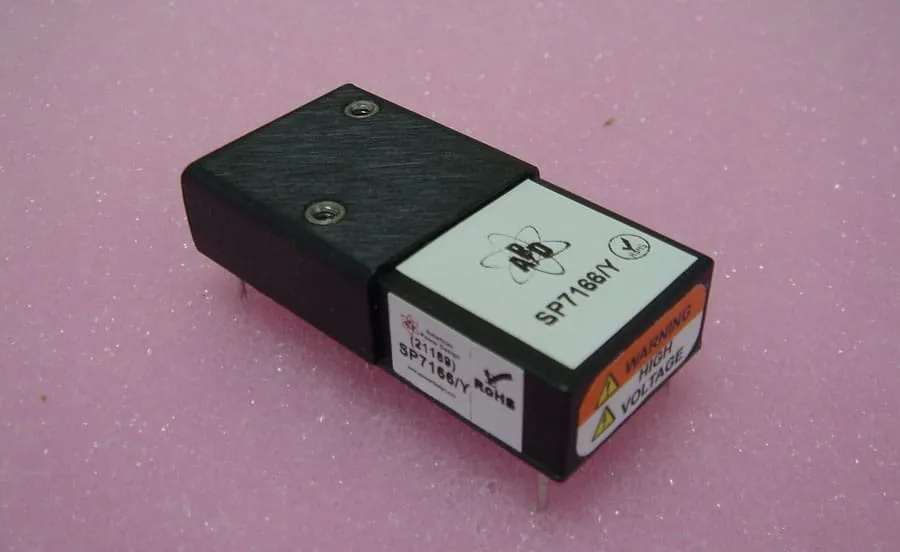

SP7166 ( 10W, 0-24V, + or -3kV, Metal Case )
Standard Model Number : SP7166
RoHs Model Number : SP7166/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………..0V to +24Vdc
Output Current …………………………………………………… 3.33mA
Voltage Accuracy ………………………………….. +/- 3% (Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation ………………………………………………. < +/- 20%
Output Ripple ……………………………………………….. < 0.5% P-P
Start-up Voltage ……………………………………………….. < 0.7Vdc
5Vdc Input +/-5% ……………………………………………….. <20 mA
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ……………………………………….. < 100mA
Full Load Input current ……………………………………….. < 500mA
Fault Output ……………………………….. Logic 1 (Fault Condition)
Logic Shutdown …………………………………………… Logic 0 (On)
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 170 kHz
Output Isolation …………………………………………….. 2,500 Vdc
Input / Output Capacitance ……………………………………. < 60pF
