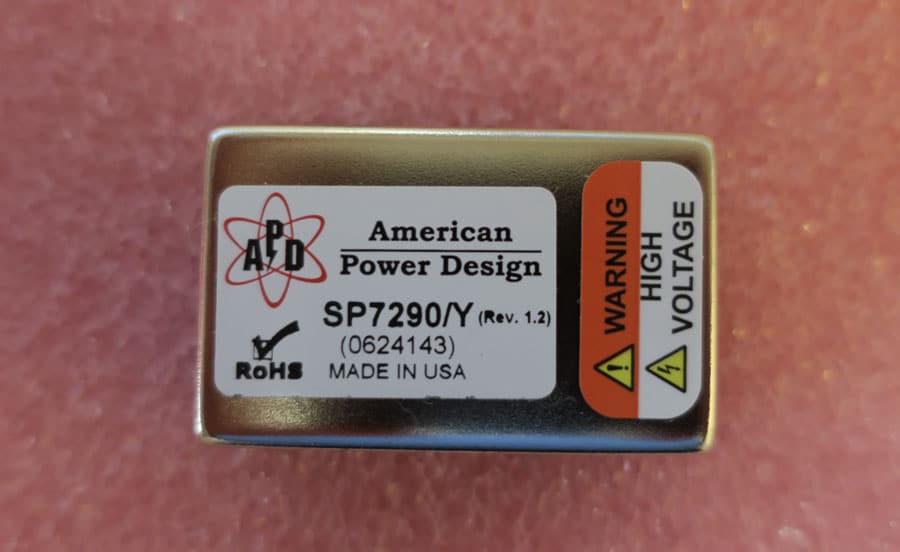

SP7290 (3W, 12V, 0-5V, 0 to +3kV )

Description

ELECTRICAL SPECIFICATIONS

Input Voltage …………………………………………… 11.5V to 16Vdc

Input Current ……………………………………… <140mA (No Load)

Input Current …………………………………….. <41 0mA (Full Load)

Output Voltage ……………………. 0V to +3kVdc (Programmable)

Output Current ……………………………………………………. 1.0 mA

Voltage Accuracy ………………………………………………… < 1.0%

Line Regulation …………………………………………………. < 0.05%

Load Regulation …………………………………………………. <0.1 %

Output Ripple …………………………………………. < 0.2% (6V P-P)

Programming Voltage …………………………………………. 0 – 5Vdc

Programming Current …………………………………………. < 100uA

Programming Linearity ……………… <0.5% (5% to 100% Vout)

Input Filter ……………………………………….. Low ESR Capacitor

Reverse Input Protection ……………………………………….. 50Vdc

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ………………………………………….. 190 kHz

Response Time ……… <400 ms (Full Load, full scale response)

Programming Voltage Shutdown …………………………. > 5.2Vdc
