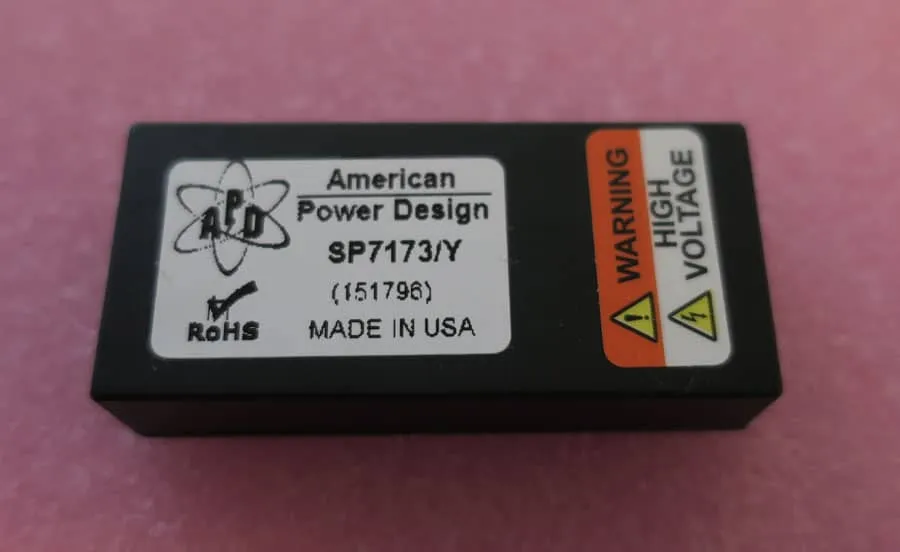

SP7173 ( 10W, 0-12V, + or-1kV Plastic case )
Standard Model Number : SP7173
RoHs Model Number : SP7173/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………………. 0-12Vdc
Output Voltage …………………………………….d. 0 to + or -1kVdc
Output Current ……………………………………………………… 10mA
Voltage Accuracy ………………………………….. +/- 3% (Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………. +/- 10%
Output Ripple ………………………………………………….. < 1% P-P
Start-up Voltage ……………………………………………….. < 0.7Vdc
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ……………………………………….. < 300mA
Full Load Input current …………………………………………… < 1.1A
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ……………………………………………. 60 kHz
Output Isolation …………………………………………….. 2,500 Vdc
Input / Output Capacitance ……………………………………. < 60pF
