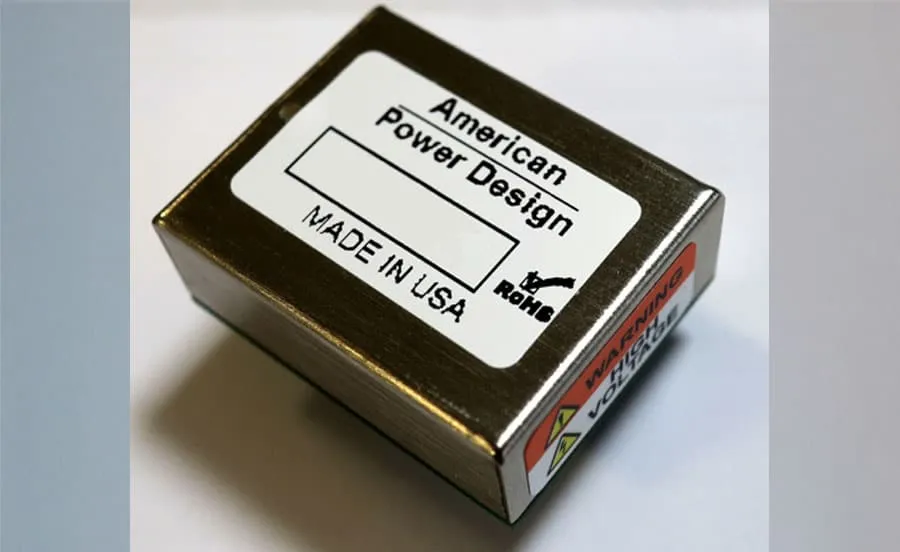

SP7160 ( 1W, Reg. 12V,5V,+500C )

Standard Model Number : SP7160

RoHs Model Number : SP7160/Y
Standard Model is NOT RoHs Compliant

Beschreibung

Input Voltage …………………………………………….. 11.5V – 16Vdc

Input Current ……………………………………… <100mA(No Load)

Input Current …………………………………….. <250mA(Full Load)

Output Voltage …………………… 0V – +500Vdc (Programmable)

Output Current …………………………………………………….. 2.0mA

Voltage Accuracy ………………………………………………… +/- 1%

Line Regulation …………………………………………………. < 0.75%

Load Regulation ……………………………………………….. <0.75%

Output Ripple ……………………………………………. < 0.002% P-P

PProgramming Voltage …………………………………………. 0 – 5Vdc

Programming Current ………………………………………….< 100uA

Programming Linearity ………………… <1% (15% to 100% Vout)

Input Filter ……………………………………….. Low ESR Capacito
