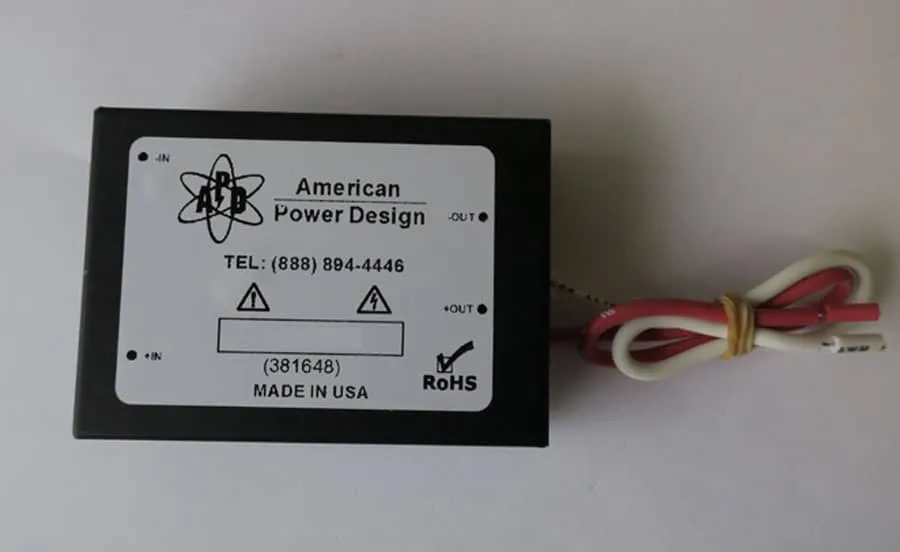

SP7171 ( 10W, 0-12V, + or -10kV )

Standard Model Number : SP7171

RoHs Model Number : SP7171/Y
Standard Model is NOT RoHs Compliant

PDF – SP7171

Beschreibung

Beschreibung

ELECTRICAL SPECIFICATIONS

Input Voltage ……………………………………………………. 0-12Vdc

Output Voltage …………………………………………………… 10kVdc

Output Current ……………………………………………………….. 1mA

Voltage Accuracy ……………………………………………….. +/- 10%

Line Regulation ………………………………………….. Proportional

Load Regulation …………………………………………………. +/- 10%

Output Ripple …………………………………………….. < 0.3% P-P

Start-up Voltage ……………………………………………….. < 0.7Vdc

Input Filter ……………………………………………………. PI Network

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ……………………………………………. 60 kHz

Output Isolation ……………………………………………….. 6000 Vdc

Input / Output Capacitance ……………………………………. < 60pF
