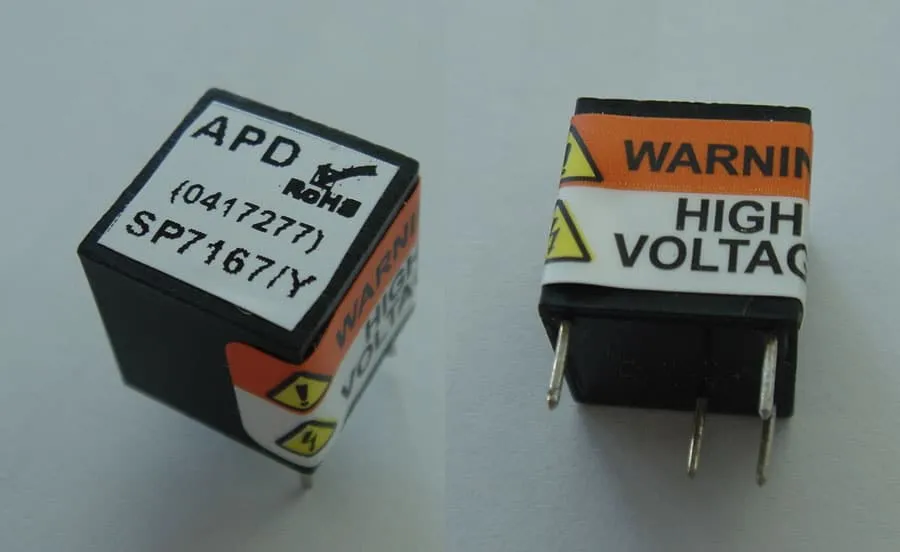

SP7167 ( 0.5W, 0-5V, + or -500V )
Standard Model Number : SP7167
RoHs Model Number : SP7167/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………………… 0-5Vdc
Output Voltage ………………………………………… + or – 0-500Vdc
Output Current ……………………………………………………….. 1mA
Voltage Accuracy ………………………………….. +/- 5% (Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………. +/- 10%
Output Ripple ……………………………………………… < 0.02% P-P
Start-up Voltage ……………………………………………….. < 0.7Vdc
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ………………………………………….. < 80mA
Full Load Input current ……………………………………….. < 180mA
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 230 kHz
Output Isolation …………………………………………………. 500 Vdc
Input / Output Capacitance ……………………………………. < 30pF
