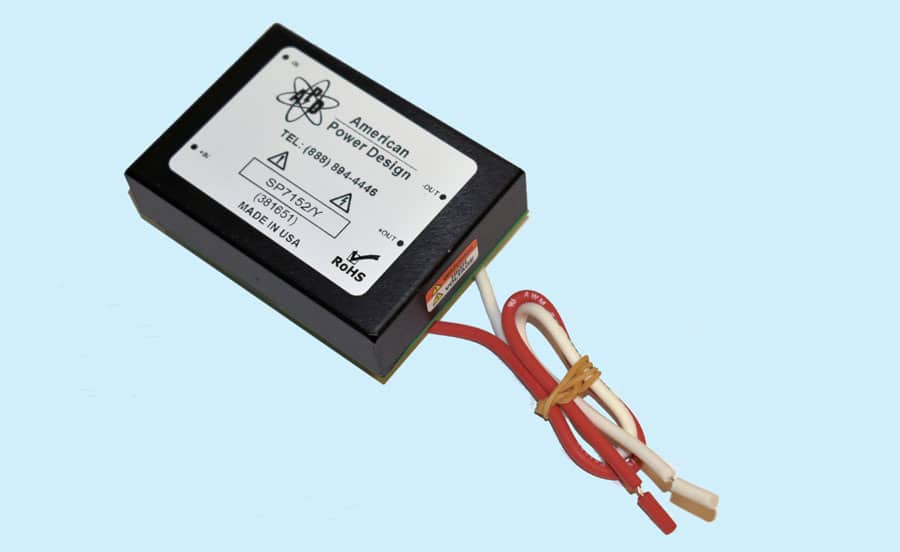

SP7152 ( 10W, 0-15V, + or -12kV )

Standard Model Number : SP7152

RoHs Model Number : SP7152/Y
Standard Model is NOT RoHs Compliant

Beschreibung

Input Voltage ……………………………………………………. 0-15Vdc

Output Voltage …………………………………………………… 12kVdc

Output Current …………………………………………………… 0.83mA

Voltage Accuracy ……………………………………………….. +/- 10%

Line Regulation ………………………………………….. Proportional

Load Regulation …………………………………………………. +/- 10%

Output Ripple …………………………………………….. < 0.3% P-P

Start-up Voltage ……………………………………………….. < 0.7Vdc

Response Time ……… <200 ms (Full Load, full scale response)

Input Filter ……………………………………………………. PI Network

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ……………………………………………. 60 kHz

Output Isolation ……………………………………………….. 5000 Vdc

Input / Output Capacitance ……………………………………. < 60pF
