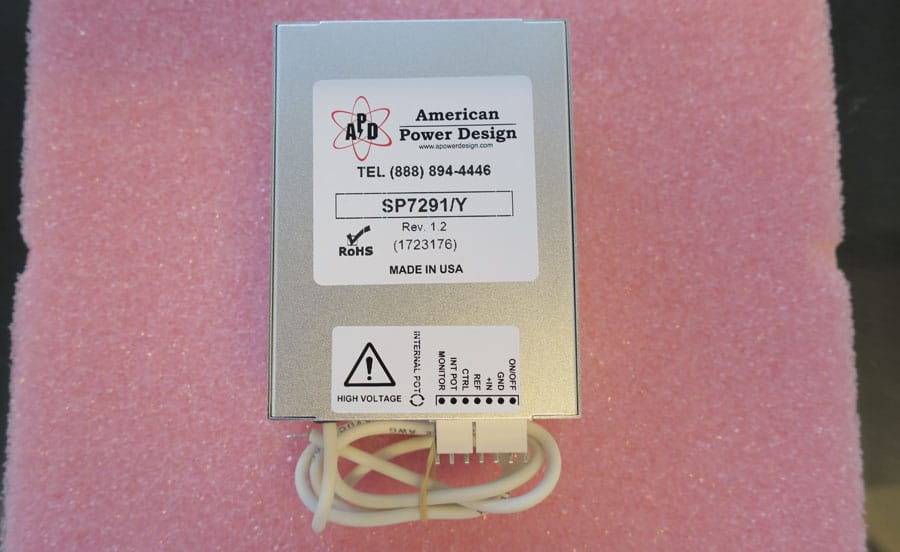

SP7291 ( 10W, 24V, 0-10V, 0 to +20kV, V-Mon. )

Standard Model Number: SP7291

RoHs Model Number : SP7291/Y
Standard Model is NOT RoHs Compliant

PDF – SP7291

Description

Description

ELECTRICAL SPECIFICATIONS

Input Voltage ……………………………………. 22.8V to 28.8Vdc

Input Current ……………………………………… <180mA (No Load)

Input Current …………………………………….. <900mA (Full Load)

Output Voltage ………………….. 0V to -20kVdc (Programmable)

Output Current ………………………………………………….. 0.5 mA

Voltage Accuracy ………………………………………………… < 1.5%

Line Regulation …………………………………………………… < 0.1 %

Load Regulation …………………………………………………. <0.2%

Output Ripple ……………………………………….. < 0.2% (40V P-P)

Programming Voltage …………………………………………. 0 – 5Vdc

Programming Current …………………………………………. < 100uA

Programming Linearity ……………… <0.5% (5% to 100% Vout)

Input Filter ……………………………………….. Low ESR Capacitor

Reverse Input Protection …………………….. 30A@5mS (Shunt)

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ………………………………………….. 170 kHz

Response Time ……… <900 ms (Full Load, full scale response)

Programming Voltage Shutdown …………………………. > 5.2Vdc

Output Voltage Monitor ………………… 0 to -5Vdc = 0 to -20kVdc

On/Off ……………………………… ON=N.C. or 0Vdc / OFF=5Vdc
