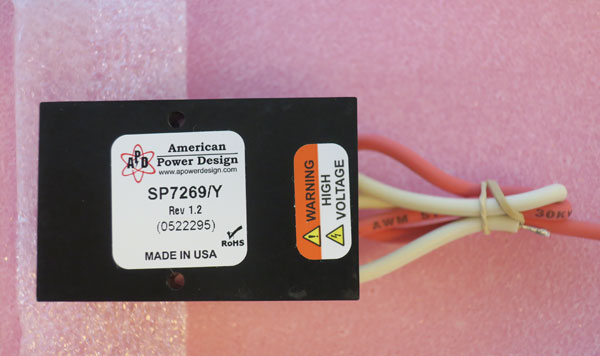

SP7269 ( 6W, 0-15V,+ or -7.5kV )
Standard Model Number: SP7269
RoHs Model Number : SP7269/Y
Standard Model is NOT RoHs Compliant
Description
ELECTRICAL SPECIFICATIONS
Input Voltage ………………………………………………… 0V to15Vdc
Output Voltage ……………………………………. 0V to + or -7.5kVdc
Output Current …………………………………………………….. 0.8mA
Voltage Accuracy …………………………………………………. +/- 5%
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………. +/- 20%
Output Ripple ……………………………………………….. < 1.5% P-P
Start-up Voltage ……………………………………………….. < 0.7Vdc
Input Filter ……………………………………………….. LC Input Filter
No Load Input current ……………………………………….. < 200mA
Full Load Input current ……………………………………….. < 800mA
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ……………………………………………. 60 kHz
Output Isolation …………………………………………….. 12,500 Vdc
Input / Output Capacitance ……………………………………. < 30pF
