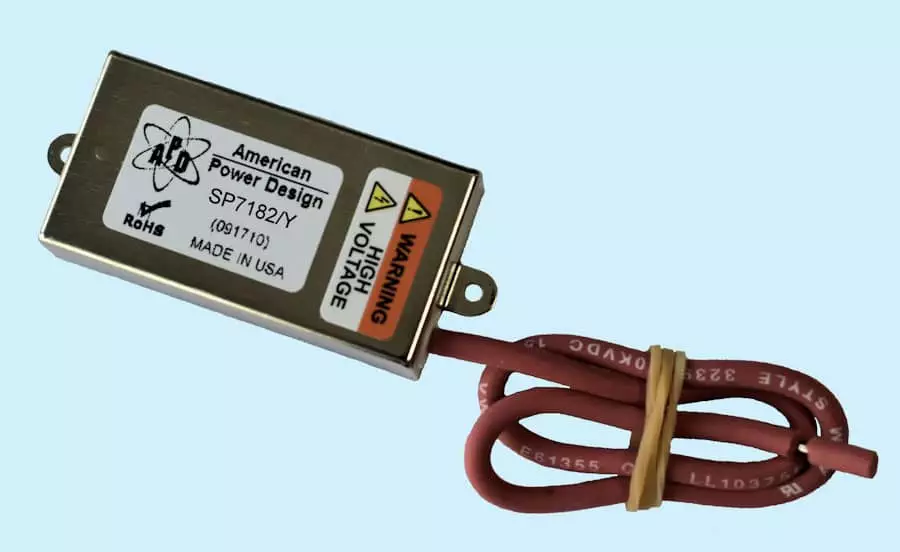

SP7182 ( 3W, +12V,+5V, 0 to +5kV )
Standard Model Number: SP7182
RoHs Model Number : SP7182/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage …………………………………………….. 11.5V – 16Vdc
Input Current ……………………………………… <150mA (No Load)
Input Current …………………………………….. <420mA (Full Load)
Output Voltage ……………………. 0V to +5kVdc (Programmable)
Output Current …………………………………………………….. 0.6mA
Voltage Accuracy …………………………………………………. +/- 1%
Line Regulation …………………………………………………. < 0.05%
Load Regulation …………………………………………………. <0.1%
Output Ripple ……………………………………………… < 0.1% P-P
Programming Voltage …………………………………………. 0 – 5Vdc
Programming Current ………………………………………….< 100uA
Programming Linearity ……………… <0.5% (5% to 100% Vout)
Input Filter ……………………………………….. Low ESR Capacitor
Reverse Input Protection ……………………………………….. 50Vdc
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 180 kHz
Gain Adjustment ……………………………………………….. 5 to 10%
Response Time ……… <250 ms (Full Load, full scale response)
Programming Voltage Shutdown ………………………… > 5.2Vdc
