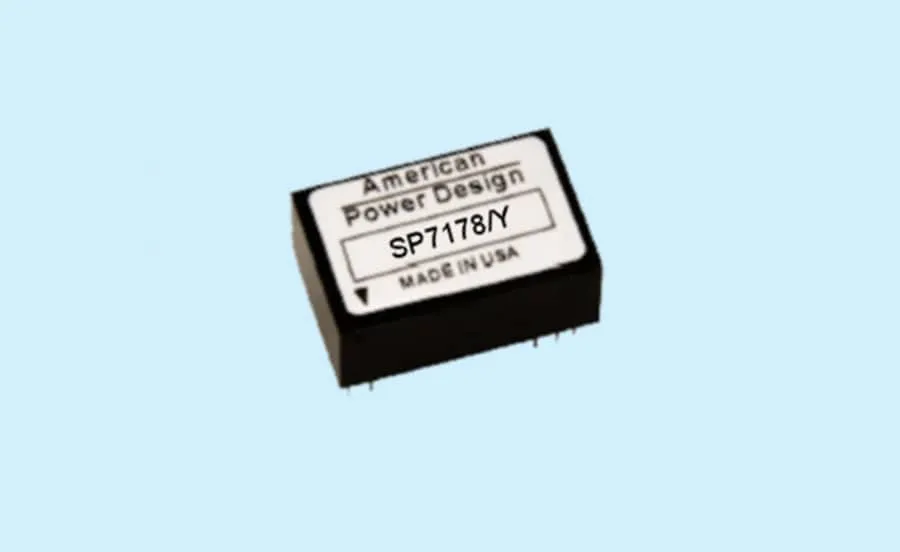

SP7178 ( 1.5W,0- 5V,+ or -2kV )

Standard Model Number: SP7178

RoHs Model Number : SP7178/Y
Standard Model is NOT RoHs Compliant

PDF – SP7178

Beschreibung

Beschreibung

ELECTRICAL SPECIFICATIONS

Input Voltage ……………………………………………………… 0-5Vdc

Output Voltage ………………………………………. + or – 0-2000Vdc

Output Current …………………………………………………… 0.75mA

Voltage Accuracy ………………………………… +/- 10% (Full Load)

Line Regulation ………………………………………….. Proportional

Load Regulation …………………………………………………… +/- 5%

Output Ripple …………………………………………………. < 10V P-P

Start-up Voltage ……………………………………………….. < 0.7 Vdc

Input Filter ……………………………………….. Low ESR Capacitor

No Load Input current ………………………………………… < 300mA

Full Load Input current ……………………………………….. < 550mA

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ………………………………………….. 150 kHz

Output Isolation ……………………………………………………. 1kVdc

Input / Output Capacitance ……………………………………. < 80pF
