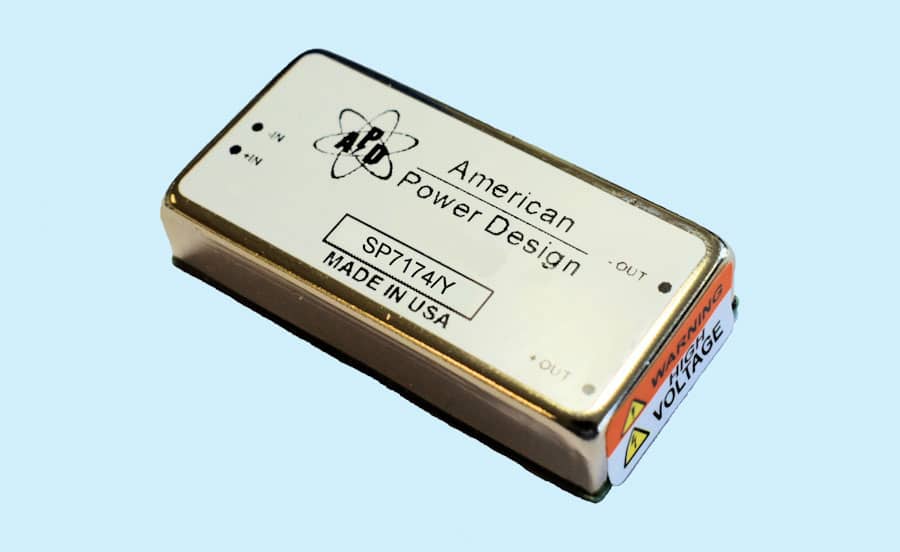

SP7174 ( 15W, 18-36V, + or -300V )

Standard Model Number : SP7174

RoHs Model Number : SP7174/Y
Standard Model is NOT RoHs Compliant

Beschreibung

Input Voltage ………………………………………………….. 18-36Vdc

Output Voltage …………………………………………………… 300Vdc

Output Current ……………………………………………………… 50mA

Voltage Accuracy …………………………………………………. +/- 1%

Line Regulation …………………………………………………. +/- 0.1%

Load Regulation ………………………………………………… +/- 0.2%

Output Ripple ……………………………………………….. < 0.4% P-P

Input Filter ……………………………………….. Low ESR Capacitor

Efficiency ………………………………………………………. 84% (typ.)

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ………………………………………….. 130 kHz

Output Isolation ……………………………………………….. 1000 Vdc

Input / Output Capacitance ……………………………………. < 80pF
