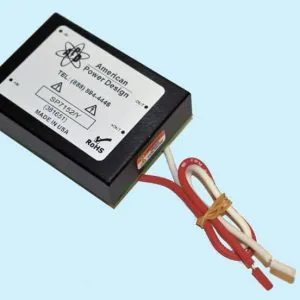

SP7170 ( 2W, 0-5V, + or -1500V )
Standard Model Number : SP7170
RoHs Model Number : SP7170/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………………… 0-5Vdc
Output Voltage ………………………………………. + or – 0-1500Vdc
Output Current …………………………………………………… 1.33mA
VoltageAccuracy ………………………………….. +/-3%(Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………… +/-5%
Output Ripple ……………………………………………….. < 0.5% P-P
Start-up Voltage ……………………………………………….. < 0.7Vdc
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ………………………………………… < 200mA
Full Load Input current ……………………………………….. < 600mA
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 80 kHz
Output Isolation ……………………………………………………. 1kVdc
Input / Output Capacitance ……………………………………. < 80pF
