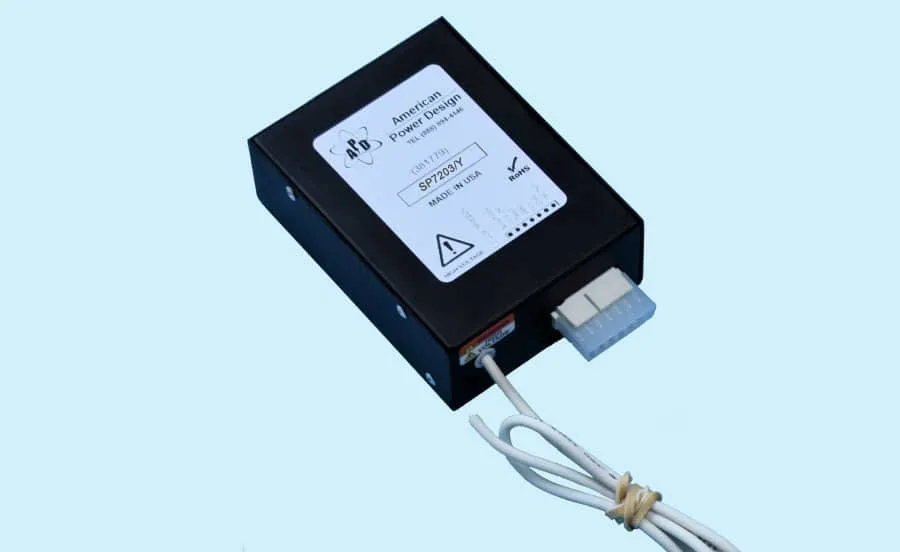

SP7203 ( 10W, 24V, 0-10V, 0 to +20kV )

Standard Model Number: SP7203

RoHs Model Number : SP7203/Y
Standard Model is NOT RoHs Compliant

PDF – SP7203

Description

Description

ELECTRICAL SPECIFICATIONS

Input Voltage ……………………………………. 22.8V to 28.8Vdc

Input Current ……………………………………… <180mA (No Load)

Input Current …………………………………….. <900mA (Full Load)

Output Voltage ………………….. 0V to +20kVdc (Programmable)

Output Current ……………………………………………………. 0.5 mA

Voltage Accuracy ………………………………………………. +/- 1.5%

Line Regulation …………………………………………………… < 0.1%

Load Regulation …………………………………………………. <0.2%

Output Ripple ……………………………………………… < 0.2% P-P

Programming Voltage ……………………………………….. 0 – 10Vdc

Programming Current ………………………………………….< 100uA

Programming Linearity ……………… <0.5% (5% to 100% Vout)

Input Filter ……………………………………….. Low ESR Capacitor

Reverse Input Protection …………………….. 30A @ 5mS (Shunt)

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ………………………………………….. 200 kHz

Response Time ……. <1500 ms (Full Load, full scale response)

Programming Voltage Shutdown ……………………….. > 10.2Vdc

Output Voltage Monitor ……………………. 0 to 10 V = 0 to 10kVdc

On/Off ……………………………… ON=N.C. or 0Vdc / OFF=5Vdc
