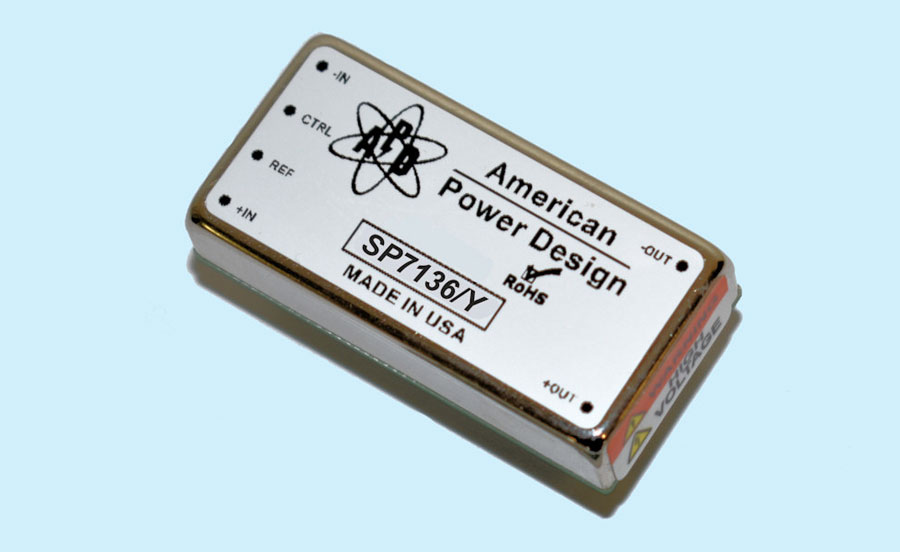

SP7136 ( 5W, 18-36V,+ or -200V )

Standard Model Number : SP7136

RoHs Model Number : SP7136/Y
Standard Model is NOT RoHs Compliant

PDF: SP7136

Description

Description

ELECTRICAL SPECIFICATIONS

Input Voltage ………………………………………………….. 18-36Vdc

Output Voltage ………………………………………………….. 200Vdc

Output Current …………………………………………………….. 25mA

Voltage Accuracy …………………………………………………. +/- 3%

Line Regulation ……………………………………………………. +/- 2%

Load Regulation ………………………….. +/- 3% (20% to full Load)

Output Ripple ………………………………………………. < 0.3 % P-P

Reference Voltage ………………………………………. 5Vdc @ 1mA

Input Filter ……………………………………….. Low ESR Capacitor

Efficiency ………………………………………………………. 82% (typ.)

Short Circuit Protection …………………………………. Continuous

Switching Frequency …………………………………………. 130 kHz

Output Isolation ……………………………………………….. 1000 Vdc

Input / Output Capacitance ……………………………………. < 80pF

EMI (Tested w/ Customer Pick-Up) ………………… < 120mV P-P

PDF – SP7136
