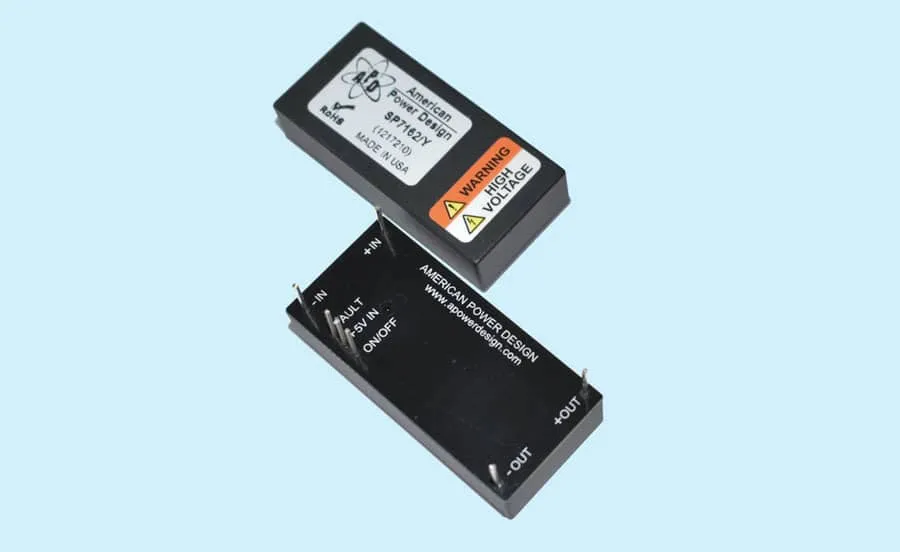

SP7162 ( 1.5W, 0-12V, + or -1.5kV)

Standard Model Number : SP7162

RoHs Model Number : SP7162/Y
Standard Model is NOT RoHs Compliant

PDF – SP7162

Description

Description

ELECTRICAL SPECIFICATIONS

Input Voltage ……………………………………………………. 0-12Vdc

Output Voltage …………………………………………………….. 1kVdc

Output Current ……………………………………………………… 10mA

Voltage Accuracy ………………………………….. +/- 3% (Full Load)

Line Regulation ………………………………………….. Proportional

Load Regulation …………………………………………………. +/- 10%

Output Ripple ………………………………………………….. < 1% P-P

Start-up Voltage ……………………………………………….. < 0.7Vdc

5Vdc Input +/-5% ……………………………………………….. <25 mA

Input Filter ……………………………………….. Low ESR Capacitor

No Load Input current ……………………………………….. < 300mA

Full Load Input current …………………………………………… < 1.1A

Fault Output ……………………………….. Logic 1 (Fault Condition)

Logic Shutdown …………………………………………… Logic 0 (On)

Short Circuit Protection ………………………………….. Continuous

Switching Frequency ……………………………………………. 60 kHz

Output Isolation …………………………………………….. 2,500 Vdc

Input / Output Capacitance ……………………………………. < 60pF
