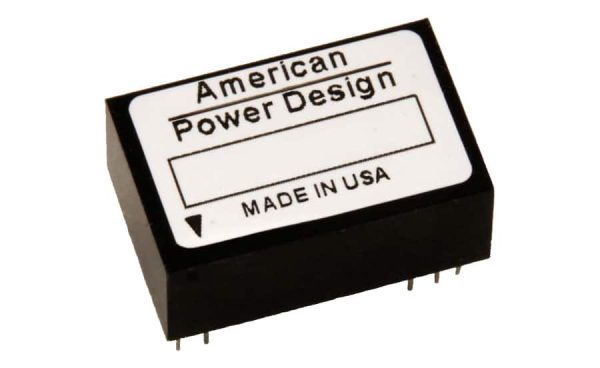

SP7180 ( 1.5W, 0-5V, + or -1kV )
Standard Model Number: SP7180
RoHs Model Number : SP7180/Y
Standard Model is NOT RoHs Compliant
Beschreibung
ELECTRICAL SPECIFICATIONS
Input Voltage ……………………………………………………… 0-5Vdc
Output Voltage ……………………………………0 to + or -1000Vdc
Output Current …………………………………………………….. 1.5mA
Voltage Accuracy ………………………………… +/- 10% (Full Load)
Line Regulation ………………………………………….. Proportional
Load Regulation …………………………………………………… +/- 5%
Output Ripple …………………………………………………. < 6V P-P
Start-up Voltage ……………………………………………….. < 0.7 Vdc
Input Filter ……………………………………….. Low ESR Capacitor
No Load Input current ………………………………………… < 300mA
Full Load Input current ……………………………………….. < 550mA
Short Circuit Protection ………………………………….. Continuous
Switching Frequency ………………………………………….. 150 kHz
Output Isolation ……………………………………………………. 1kVdc
Input / Output Capacitance ……………………………………. < 80pF
