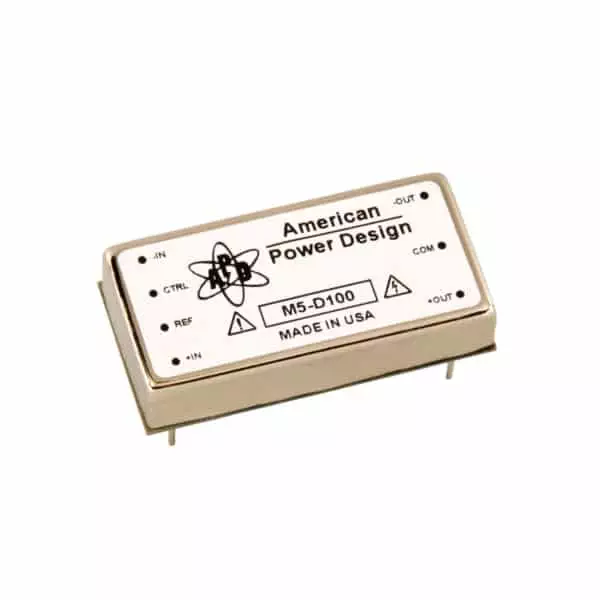

M5 SERIES (5W)
Features
- Customer Selects Output Voltage
- Outputs to 1000 Vdc
- Fully Programable Outputs
- Single and Dual Outputs
- Wide Input Ranges
- (10-20Vdc , 18-36Vdc)
- 1000 Vdc Output Isolation
- Continuous Short Circuit Protection
The M5 Series high voltage DC/DC converter offers 100% programable single or dual high voltage outputs using a 0-5Vdc analog signal. Each model is enclosed in a sixsided shielded metal case and has 1000Vdc of isolation allowing one model to be utilized for both positive or negative applications. All models will tolerate a short circuit indefinitely.
Beschreibung
Beschreibung
| Output Power | 5W |
| Output Voltage | +or- 24Vdc up to +or- 1000Vdc |
| Output Ripple | <0.3% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 1000Vdc |
| Temp. (Operating, Case) | -25 to +70°C |
| EMI/RFI | Six Sided Shield |
| Case Material | Nickel Plated Metal |
