L1 SERIES (1W)
Features
- Customer Selects Output Voltage
- Outputs to 500 Vdc
- Low Profile
- Excellent Line & Load Regulation
- Low Output Ripple
- 1000 Vdc Output Isolation
- Continuous Short Circuit Protection
- Economical

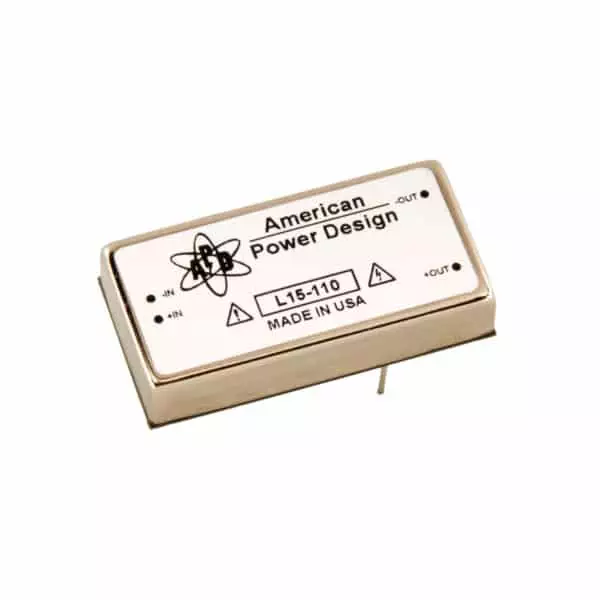

The L1 Series Low Profile DC/DC converter offers a 1000 Vdc isolated high voltage output in a six-sided metal case. Their small size, low output ripple, and excellent regulation characteristics make them ideally suited for applications that demand a high degree of performance All models will tolerate a short circuit indefinitely.
Beschreibung
Beschreibung
| Output Power | 1W |
| Output Voltage | +or- 24Vdc up to +or- 500Vdc |
| Output Ripple | <0.05% P-P |
| Short Circuit Protection | Continuous |
| Temp. (Operating, Case) | 0 to +70°C |
| EMI/RFI | Six Sided Shield |
