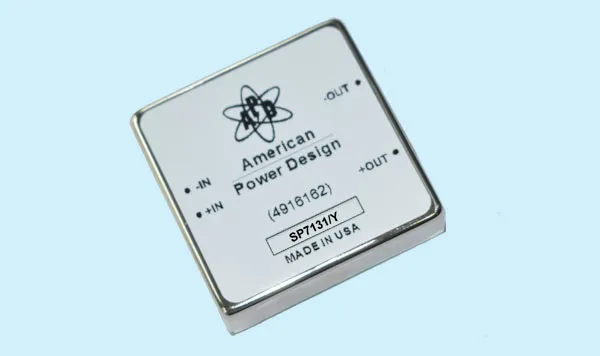

SP7131 ( 50W, 18-36V, +-180V )

Standard Model Number : SP7131

RoHs Model Number : SP7131/Y
Standard Model is NOT RoHs Compliant

PDF: SP7131

Description

Description

ELECTRICAL SPECIFICATIONS

Input Voltage…………………………………………………….18-36Vdc
Output Voltage…………………………………………………..,.180Vdc
Output Current……………………………………………………..277mA
Voltage Accuracy …………………………………………………. +/- 1%
Line Regulation …………………………………………………. +/- 0.3%
Load Regulation ………………………………………………… +/- 0.5%
Output Ripple ………………………………………………. < 0.5 % P-P

Input Filter ……………………………………….. Low ESR Capacitor
Efficiency ………………………………………………………. 89% (typ.)
Short Circuit Protection …………………………………. Continuous
Switching Frequency …………………………………………. 130 kHz
Output Isolation ……………………………………………….. 1000 Vdc
Input / Output Capacitance ………………………………….. < 200pF
