S5 SERIES (5W)
Features
- Customer Selects Output Voltage
- Outputs to 1000 Vdc
- Low Profile
- Single and Dual Outputs
- Ultra Wide Input Ranges
- (9-36Vdc , 20-60Vdc , 36-72Vdc)
- 1000 Vdc Output Isolation
- Continuous Short Circuit Protection

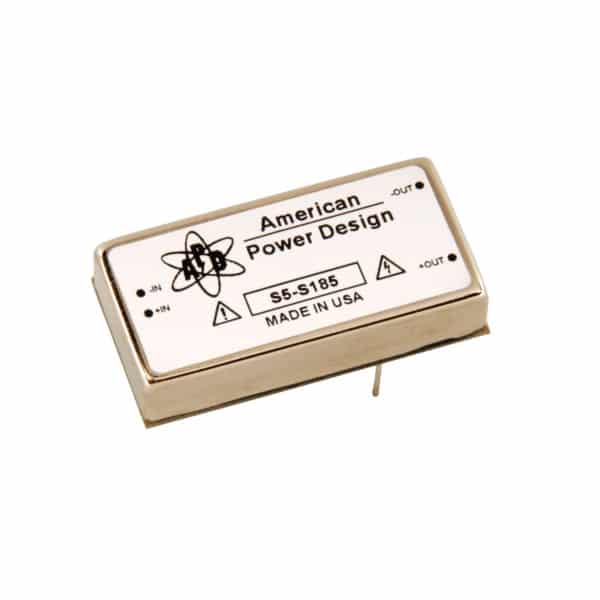

The S5 Series low profile high voltage DC/DC converter offers a 1000 Vdc isolated single or dual high voltage output in a six-sided metal case. Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance All models will tolerate a short circuit indefinitely.
Description
Description
| Output Power | 5W |
| Output Voltage | +or- 24Vdc up to +or- 1000Vdc |
| Output Ripple | <0.5% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 1000Vdc |
| Temp. (Operating, Case) | -25 to +70°C |
| EMI/RFI | Six Sided Shield |
| Case Material | Nickel Plated Metal |
