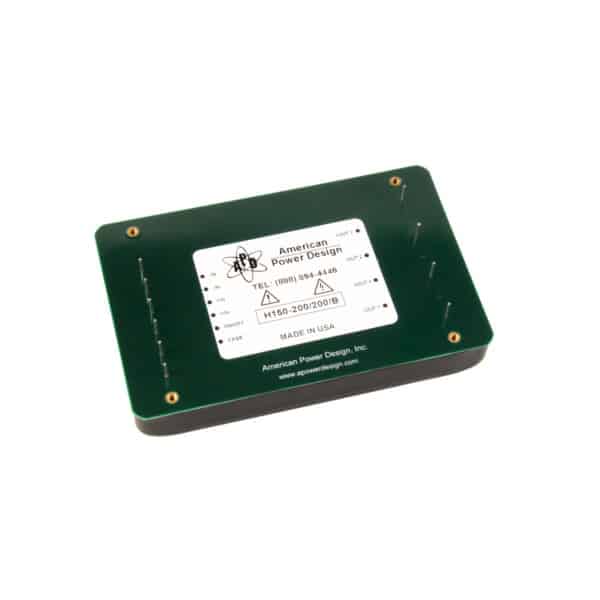

H150 SERIES (150W)

Features

  • Customer Selects Output Voltage
  • Ultra Wide Input Ranges
    • (18-36Vdc , 20-60Vdc)
  • Efficiency 91% (typ.)
  • Independently Isolated Outputs
  • Optional Chassis Mount
  • Remote On/Off Control
  • Continuous Short Circuit Protection

The H150 Series of DC/DC converters accepts ultra wide input ranges of 18-36 Vdc, and 20-60 Vdc. Outputs are independently isolated. In the case of duals, up to 120 watts may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a Pi input filter and remote on/off.

H150 SERIES (150W, SEMI-REGULATED)

Description

Description

Output Power 150W
Output Voltage +or- 50Vdc up to +or- 500Vdc
Output Ripple <0.5% P-P
Short Circuit Protection Continuous
Output Isolation 1000Vdc
Temp. (Operating, Case) -45 to +85°C
EMI/RFI Six Sided Shield
Case Material Black Coated Metal
