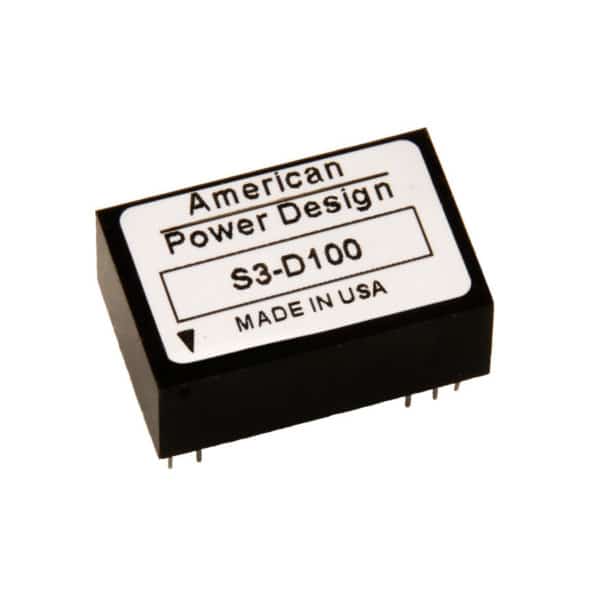

S3 SERIES (3W)

Features

  • Customer Selects Output Voltages
  • Voltages up to 500Vdc
  • Wide Input Range (9-36Vdc)
  • Efficiency 70% (typ.)
  • 500 Vdc Isolation
  • 24 PIN DIP Package
  • 52 kHz Switching Frequency
  • Single or Dual Outputs

The S3 Series of DC/DC converters accepts an ultra wide input range of 9-36 Vdc, delivering a 500 Vdc isolated high voltage output. All models feature a 24-pin dip compatible configuration , continuous short circuit protection, and a low ESR input capacitor.

S3 SERIES (3W, SEMI-REGULATED)

Description

Description

Output Power 3W
Output Voltage +or- 50Vdc up to +or- 500Vdc
Output Ripple <0.3% P-P
Short Circuit Protection Input Current Foldback
Isolation 500Vdc
Temp. (Operating, Case) -25 to +70°C
Case Material Black Plastic
