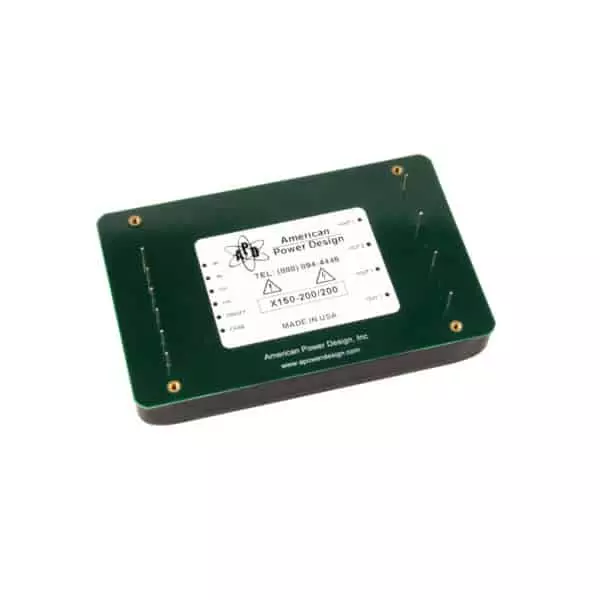

X150 SERIES (150W)
Features
- Customer Selects Output Voltage
- Ultra Wide Input Ranges
- (18-36Vdc , 20-60Vdc , 36-72Vdc)
- Efficiency 90% (typ.)
- Independently Isolated Outputs
- Six-Sided Shielded Case
- Remote On/Off Control
- Continuous Short Circuit Protection
The X150 Series of DC/DC converters accepts ultra wide input ranges of 18-36 Vdc, 20-60 Vdc and 36-72 Vdc. Outputs are independently isolated. In the case of duals, up to 120 watts may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a Pi input filter and remote on/off.
Beschreibung
Beschreibung
| Output Power | 150W |
| Output Voltage | +or- 48Vdc up to +or- 500Vdc |
| Output Ripple | <0.3% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 1000Vdc |
| Temp. (Operating, Case) | -45 to +85°C |
| EMI/RFI | Six Sided Shield |
| Case Material | Black Coated Metal |
