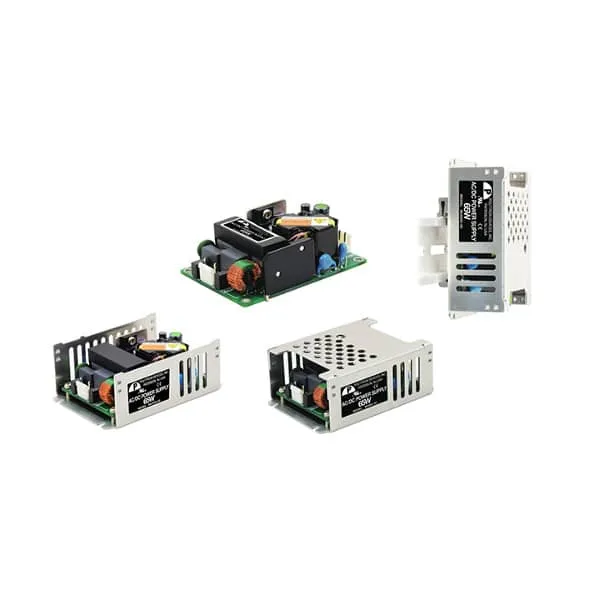

MUI65 SERIES (65W)
Features
- Universal Input Range
- Operating Temperature Range: -25º to 80ºC (with derating)
- Compact Package: 2.00” × 3.00” × 1.16”
- Mounting Options: Screw Terminal, Chassis Mount, Din Rail, Open Type, Enclosed (Standard)
- High Efficiency: Up to 92%
- Active Power Factor Correction
- Low Leakage Current Under 75μA
- Built-in EMI Class A Filter
- 2000VAC Input to Output 2 MOPP Isolation
- Class I and Class II Protection
- Medical Safety Approvals: UL, CE and ANSI/AAMI ES60601-1, EN60601-1 and IEC60601-1 3rd Edition
- RoHS Compliant to 2011/65/EU
- 0.11 Watt Low Standby Power Consumption
- Operating Altitude 5000M
