J5 SERIES (5W)
Features
- Customer Selects Output Voltage
- Single Outputs to + or – 6000 Vdc
- Dual Outputs to +/- 3000 Vdc
- High Reliability
- Industry Standard Pinouts
- Wide Temperature Range (-25 to +85°C)
- 80 kHz Switching Frequency
- 3500 Vdc Output Isolation
- Continuous Short Circuit Protection

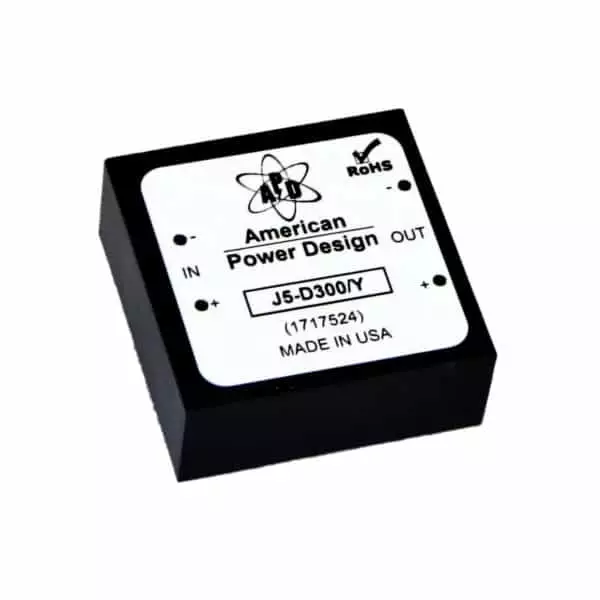

The J5 Series of miniature DC/DC converters offers a 3500 Vdc isolated high voltage output directly proportional to input voltage. They are available in industry standard pinouts. All models will tolerate a short circuit indefinitely.
Beschreibung
Beschreibung
| Output Power | 5W |
| Output Voltage | +or- 50Vdc up to +or- 3000Vdc |
| Output Ripple | <2% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 3500Vdc |
| Temp. (Operating, Case) | -25 to +85°C |
| EMI/RFI | Shielded Version Available |
| Case Material | Black Phenolic |
