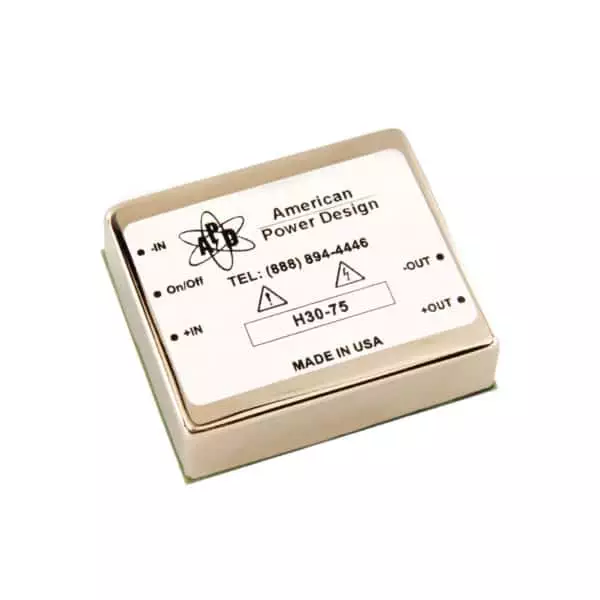

H30 SERIES (30W)
Features
- Customer Selects Output Voltage
- Ultra Wide Input Ranges
- (9-36Vdc , 20-60Vdc)
- Efficiency 85% (typ.)
- Independently Isolated Outputs
- Six-Sided Shielded Case
- Remote On/Off Control
- Continuous Short Circuit Protection
The H30 Series of DC/DC converters accepts ultra wide input ranges of 9-36 Vdc & 20-60 Vdc. Outputs are independently isolated. In the case of duals, up to 24 Watts may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a Pi input filter and remote on/off.
Beschreibung
Beschreibung
| Output Power | 30W |
| Output Voltage | +or- 50Vdc up to +or- 500Vdc |
| Output Ripple | <0.4% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 1000Vdc |
| Temp. (Operating, Case) | -45 to +85°C |
| EMI/RFI | Six Sided Shield |
| Case Material | Nickel Plated Metal |
