Beschreibung
INTRODUCTION

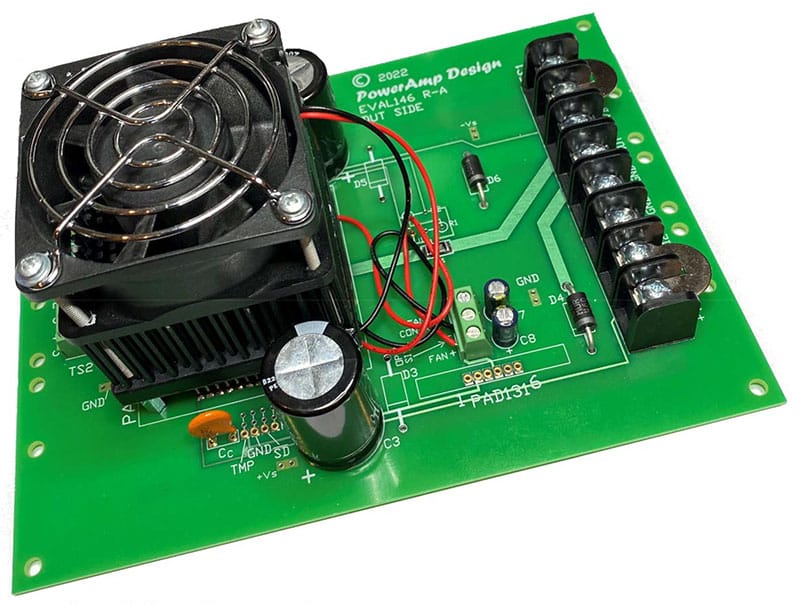

The EVAL146 assembled evaluation kit provides a convenient method to become familiar with the operation of the PAD146 operational amplifier before your application circuit is committed to production. Some assembly is required since some user selections are needed depending on the application. For example, a current limit resistor value needs to be selected by the user. Also, there are several PCB mounting options available.
Critical connections for power supply bypassing and compensation are pre-wired. Connections are also provided for the optional PAD131 Fan Controller Accessory Module. Diode clamps on each power supply and the output connections are provided for those applications in which significant inductive kickback may be found. Terminal strips are also provided for input and output signals and power.
