E1 SERIES (1W)
Features
- Customer Selects Output Voltage
- Fully Regulated Outputs to + or – 8000 Vdc
- 0-100% Programable Output
- High Stability (<0.005%/°C)
- Low Output Noise & EMI/RFI
- External Calibration Adjustment
- Continuous Short Circuit Protection
Certified: UL / IEC / CAN / CSA / EN: 62368-1 & CE Mark ( Reliable also for medical & analitical application )

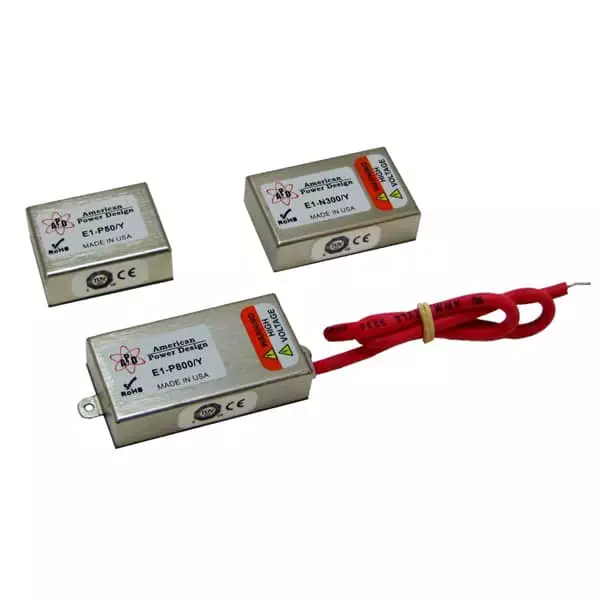

The E1 Series miniature regulated high voltage DC/DCconverter offers a 100% programable high voltage outputusing a 0-5Vdc analog signal. Their small size, low outputripple, and excellent regulation make them ideally suited forapplications that demand a high degree of performance.All models will tolerate a short circuit indefinitely.
Beschreibung
Beschreibung
| Output Power | 1W |
| Output Voltage | +or- 100V up to +or- 8kV |
| Input Voltage Range | 11.5V-16Vdc |
| Output Ripple | 0.002% P-P |
| Programming Voltage | 0-5Vdc @ <100uA |
| Reverse Input Protection | 50Vdc |
| Short Circuit Protection | Continuous |
| Programming Voltage Shutdown | >5.2Vdc |
| Temp. (Operating, Case) | -10 to +60°C |
| EMI/RFI | Six Sided Shield |
| Certifications | UL & CE Pending |
