C50 SERIES (50W)

C50 SERIES (50W)

Features

  • Customer Selects Output Voltage
  • Outputs to 28 Vdc
  • Wide Input Ranges
    • (10-20Vdc, 18-36Vdc, 20-60Vdc, 36-72Vdc)
  • Excellent Line & Load Regulation
  • 500 Vdc Output Isolation
  • Continuous Short Circuit Protection
  • Thermal Shutdown (Self-Resetting)
  • Available in Chassis Mount

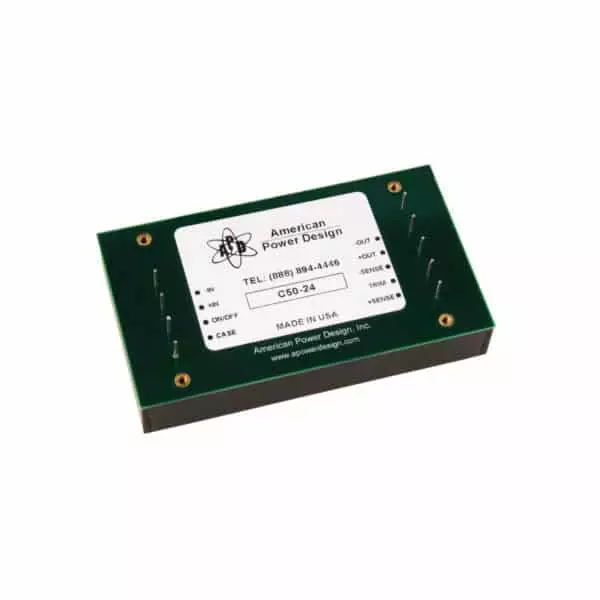

The C50 Series of DC/DC converters offers a single output to 28Vdc and 500Vdc of isolation. They are available in either PC or Chassis mount configurations. Their rugged enclosure, low output ripple, and excellent regulation characteristics make them ideally suited for harsh environment applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.

C50 SERIES (50W, REGULATED)

Kategorien: ,
Output Power 50W
Output Voltage +or- 3.3Vdc up to +or- 28Vdc
Output Ripple <100mV P-P
Output Trim +/-10%
Short Circuit Protection Continuous
Output Isolation 500Vdc
Temp. (Operating, Case) -40 to +85°C
EMI/RFI Six Sided Shield
Thermal Shut Down 100°C/+/-5°C
Case Material Black Coated Metal
