| Output Power | 50W |
| Output Voltage | +or- 48Vdc up to +or- 200Vdc |
| Output Ripple | <0.5% P-P |
| Short Circuit Protection | Continuous |
| Output Isolation | 1000Vdc |
| Temp. (Operating, Case) | -25 to +70°C |
| EMI/RFI | Six Sided Shield |
| Case Material | Nickel Plated Metal |

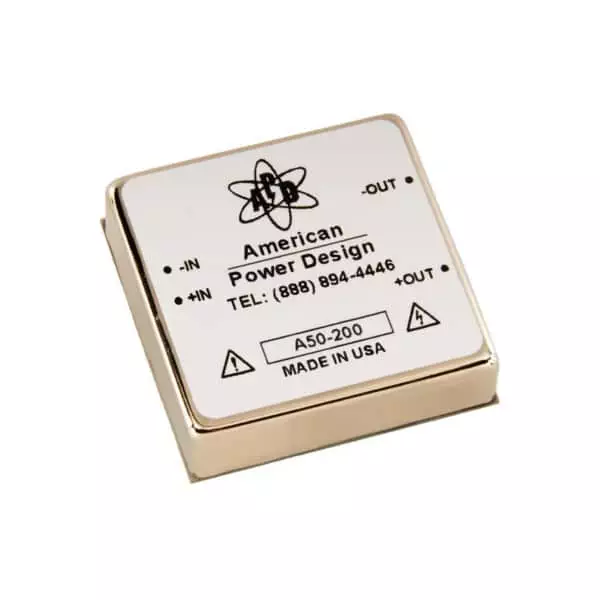

A50 SERIES (50W)
Features
- Customer Selects Output Voltage
- Outputs to 200 Vdc
- Low Profile
- High Regulation
- Ultra Wide Input Ranges
- (10-20Vdc , 18-36Vdc , 36-72Vdc)
- 1000 Vdc Output Isolation
- Continuous Short Circuit Protection
The A50 Series low profile high voltage DC/DC converter offers a highly regulated high voltage isolated output in a six-sided metal case. Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.
